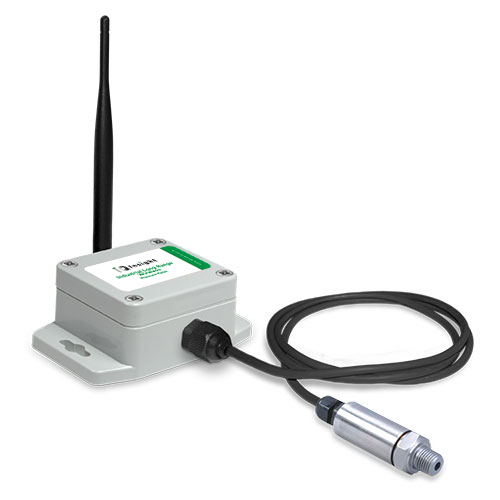

Industrial Wireless Pressure Meter - 50 PSIG (868MHz)

Industrial Wireless Pressure Meter – 50 PSIG (868MHz)

In Stock

£426.00

Industrial wireless pressure meters (50 PSIG) measure pressure from a 5 volt pressure transducer and transmits the pressure measurement to the IQ Insight online portal. By connecting the wireless pressure sensor to a pressurized gas, liquid or vapor supply line, it can measure the pressure within the line and send data to the IQ Insight portal. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. User customization allows you to set notifications and alerts from the system so you can know immediately if pressure is above or below an optimal range.

SEND TO FRIEND

The wireless pressure meter measures pressure in a gas, liquid or vapor supply line and transmits the pressure measurement to the IQ Insight online portal. This solution combines a standard pressure transducer interfaced to a wireless radio.
• Measure pressure with 50 or 300 PSIG transducers (others available upon request)
• Measure non-caustic liquid or vapor pressures
• Pressure transducer is NEMA 4X (IP66), CE Rated

By connecting the wireless pressure meter to a pressurized gas, liquid or vapor supply line, it can measure the pressure within the line and send data to the IQ Insight online portal. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. User customization allows you to set notifications and alerts from the system so you can know immediately if pressure is above or below an optimal range.

Additional Information

Weight	114 kg
Dimensions	3701 × 2316 cm

Specifications

• SKU: MNS2-8-IN-PS-050
• Height: 2.316
• Width: 3.701
• Depth: 1.378
• Dimension Measure: Inches
• Gross Weight: 11.400
• Weight Measure: Ounces
• Frequency: 868 MHz

Features

• Wireless range of 1,200+ feet through 12+ walls *
• Frequency-Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life **
(12+ years on AA batteries)
• All sensors now have up to 3200 readings:
– 10-minute heartbeats = 22 days
– 2-hour heartbeats = 266 days
• Over-the-air updates (future proof)

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting
frequency and other variables. Other power options
are also available.

Applications

• Compressors/compressed air lines
• Water supply lines
• Pumping systems
• Irrigation system pressure
• Industrial process monitoring
• Trash compaction equipment
